Product Details:
Payment & Shipping Terms:
|

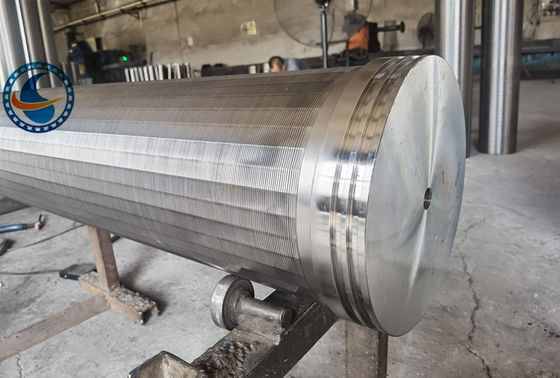

| Name: | Wedge Wire Slotted Screen Pipe | Material: | Stainless Steel 316L |
|---|---|---|---|
| Diameter: | 200mm | Length: | 1534mm |
| Slot Size: | 0.3mm | Wire: | 1.5*2mm |
| Support Rod: | 2*3mm Etc | Package: | Wooden Box |
| Surface: | Polished | One End: | Open |
| The Other End: | With 38mm Thickness Flange | Use: | Steel Mill |
| High Light: | 0.3mm slotted wedge wire pipe,welded wedge wire pipe cylinder type,welded sus wedge wire filter |
||
Extended lifetime
Slot does not change during abrasive operation on the screen surface.
Increased efficiency
Capability to withstand heavy loads
High open area
No clogging
Perfectly smooth and flat surface
High precision of execution
Increased capacity and more precise separation, dewatering and filtration
Self-cleaning effect
Low pressure loss
High open area and strength parameter
Proper size of profile wire
Proper size of structural support wire
Profile shape of working wires (type Sb, Sbb or special wires)
Increased economical effectiveness, Lower cost
Higher efficiency
Permanence of exploited resources
Reduced maintenance cost
Q1. Can I have a sample order for Wedge Wire Slotted Screen Pipe?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 5 days, mass production time needs 1-2 weeks acconding to the order quantity.
Q3. Do you have any MOQ limit for Wedge Wire Slotted Screen Pipe order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for Wedge Wire Slotted Screen Pipe?
1st, let us know your requirements or application.
2nd, We quote according to your requirements or our suggestions.
3rd,customer confirms the samples and places deposit for formal order.
4th, We arrange the production.
Q6. Is it OK to print my logo on Wedge Wire Slotted Screen product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
| Name | Cylinder Type Welded Stainless Steel Wedge Wire Slotted Screen Pipe |
| Material | Stainless steel 304, 304L, 316L and 321 etc. |
| Profile Wire |
1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc |
| Support Rods | 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm |
| Round | From 2.5mm to 6.0mm |
| Slot Size | 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length | Max 6 meter |
| Pipe diameter | 25mm to 1300mm |
| Screen Ends | Plain Beveled ends, male/female threaded, flange or close up. |
